• 5V superheterodyne high-frequency wireless receiver module

    AU-RM03

    Operating Voltage: DC5V
    Quiet Current: 9mA
    Receiver Frequency: 315MHz (266-433MHz selectable)
    Receiver Sensitivity: -110dB
    Dimensions: 30*12*4mm
    Pin Order: VCC, DATA, DATA, GND

  • 5V Ultra-small Superheterodyne Wireless High-Frequency Receiver Module

    AU-RM05

    Operating Voltage: DC 5V
    Quiet Current: 9mA
    Receiver Frequency: 315MHz (266-433MHz selectable)
    Receiver Sensitivity: -110dB
    Dimensions: 15*10*4mm
    Pin Order: GND, DATA, DATA, +5V

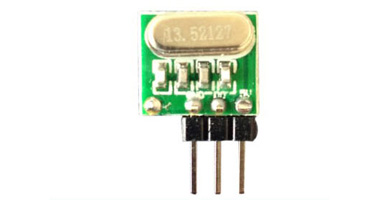

  • 5V Tripod Ultra-Small Superheterodyne Wireless High-Frequency Receiver Module

    AU-RM07

    Operating Voltage: 5.0VDC
    Operating Current: <= 9.5mA (5.0VDC)
    Dimensions: 12*10*4.5mm
    Operating Frequency: 315MHz, 433.92MHz, custom frequencies available
    Sensitivity: -110dBm
    Pin Order: GND, DATA, +5V

  • 5V superheterodyne high-frequency wireless receiver module

    AU-RM14

    Operating Voltage: 5.0VDC ±0.5V
    Quiet Current: 9mA
    Receiver Frequency: 315MHz (266-433MHz selectable)
    Dimensions: 30*12*4mm
    Sensitivity: -110dBm
    Pin Order: VCC, DATA, DATA, GND

  • 5V superheterodyne high-frequency wireless receiver module

    AU-RM14C

    Operating Voltage: 5.0VDC ±0.5V
    Quiet Current: 5mA
    Receiver Frequency: 433.92MHz (266-433MHz selectable)
    Dimensions: 23*11*6mm
    Sensitivity: －106DB
    Pin Order: VCC, DATA, DATA, GND

  • FM 5V superheterodyne wireless high-frequency receiver module

    AU-FS01

    Operating Voltage: 5.0VDC ±0.5V
    Quiet Current: 5mA
    Receiver Frequency: 433.92MHz (266-433MHz selectable)
    Dimensions: 23*11*6mm
    Sensitivity: －106DB
    Pin Order: VCC, DATA, DATA, GND

  • 5V superheterodyne wireless high-frequency receiver module

    AU-RM03B

    Operating Voltage: 5.0VDC ±0.5V
    Quiet Current: 5mA
    Receiver Frequency: 433.92MHz (266-433MHz selectable)
    Dimensions: 30*12*4.65mm
    Sensitivity: －110DB
    Pin Order: VCC, DATA, DATA, GND

  • 5V superheterodyne wireless high-frequency receiver module

    AU-3600

    Operating Voltage: 5.0VDC
    Operating Current: <= 9.5mA (5.0VDC)
    Dimensions: 38*14*4mm
    Operating Frequency: 315MHz, 433.92MHz, custom frequencies available
    Sensitivity: -110dBm
    Pin Order: ANT, GND, GND, DATA, VCC

  • 5V superheterodyne wireless high-frequency receiver module

    AU-3600C

    Operating Voltage: 5.0VDC
    Operating Current: <= 9.5mA (5.0VDC)
    Dimensions: 34*11*4mm
    Operating Frequency: 315MHz, 433.92MHz, custom frequencies available
    Sensitivity: -110dBm
    Pin Order: ANT, GND, GND, DATA, VCC

  • 5V superheterodyne wireless high-frequency receiver module

    AU4603

    Operating Voltage: 5.0VDC
    Operating Current: <= 9.5mA (5.0VDC)
    Dimensions: 43*11*4mm
    Operating Frequency: 315MHz, 433.92MHz, custom frequencies available
    Sensitivity: -110dBm
    Pin Order: ANT、GND、GND、+5V +5V、DATA、DATA、GND

  • 5V Super Regenerative Wireless High Frequency Receiver Module

    AU-RM-5V

    Operating Voltage: DC 5V
    Quiet Current: 4mA
    Receiver Frequency: 315MHz (266-433MHz selectable)
    Receiver Sensitivity: -105dB
    Dimensions: 30*14*7mm
    Pin Order: VCC, DATA, DATA, GND

  • 5V Ultra-small Size Super-regenerative Wireless High Frequency Receiver Module

    AU-RMX-5V

    Operating Voltage: DC 5V
    Quiet Current: 4mA
    Receiver Frequency: 315MHz (266-433MHz selectable)
    Receiver Sensitivity: -105dB
    Dimensions: 15*12*6mm
    Pin Order: VCC, DATA, DATA, GND

  • 3V low-power super-regenerative wireless high-frequency receiver module

    AU-3JS

    Operating Voltage: DC 3V
    Quiet Current: 200µA
    Receiver Frequency: 315MHz (266-433MHz selectable)
    Receiver Sensitivity: -95dB
    Dimensions: 28*16*7mm
    Pin Order: VCC, DATA, DATA, GND

  • 3V low-power super-regenerative wireless high-frequency receiver module

    AU-3JS-D

    Operating Voltage: DC 3V
    Quiet Current: 200µA
    Receiver Frequency: 315MHz (266-433MHz selectable)
    Receiver Sensitivity: -95dB
    Dimensions: 27.5*13*7mm
    Pin Order: VCC, DATA, DATA, GND

  • 3V low-power super-regenerative wireless high-frequency receiver module

    AU-3JS-G

    Operating Voltage: DC 3V
    Quiet Current: 200µA
    Receiver Frequency: 315MHz (266-433MHz selectable)
    Receiver Sensitivity: -98dB
    Dimensions: 43*9.5*7mm
    Pin Order: ANT、GND、GND、+3V、+3V、GND、DATA、GND
