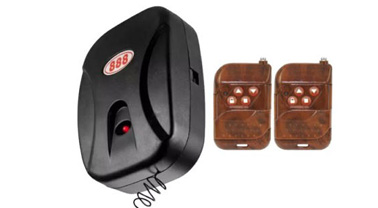

• Roller shutter door motor (external motor) controller

    AU-JLM

    Receiver Control Box
    1. Dimensions: 102 x 80 x 35mm
    2. Weight: 430g
    3. Operating Temperature: -10 to 70 degrees Celsius
    4. Operating Voltage: AC220V
    5. Operating Frequency: 315MHz, 433.92MHz (other frequencies optional)
    6. Reception Method: Super-regenerative (or superheterodyne)
    7. Contact Current: 220V 10A

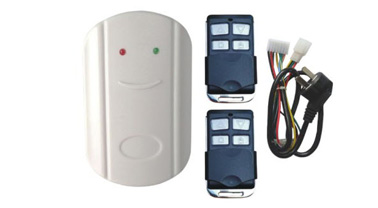

  • Roller shutter door motor (tubular motor) controller

    AU-GZMI

    Operating Voltage: Receiver controller AC220V, Remote controller 12V27A
    Operating Frequency: 433.92MHz
    Modulation Method: ASK (Amplitude Modulation)
    Encoding/Decoding Method: Microcontroller-specific encoding/decoding
    Transmission Distance: >50m (Receiver sensitivity above -103dBm in open areas)
    Operating Temperature: -10℃~+70℃
    Dimensions: Receiver controller (120×82×40mm), Remote controller (55×32×15mm)
    Product Weight: 302 grams (Controller + 2 Remote Controllers + Adapter Cable + Packaging Box)

  • Roller shutter door motor (tubular motor) controller

    AU-GZM-DY

    Operating Voltage: Receiver controller AC220V, Remote controller 12V27A
    Operating Frequency: 433.92MHz
    Modulation Method: ASK (Amplitude Modulation)
    Encoding/Decoding Method: Microcontroller-specific encoding/decoding
    Transmission Distance: >50m (Receiver sensitivity above -103dBm in open areas)
    Operating Temperature: -10℃~+70℃
    Dimensions: Receiver controller (120×82×40mm), Remote controller (55×32×15mm)
    Product Weight: 302 grams (Controller + 2 Remote Controllers + Adapter Cable + Packaging Box)

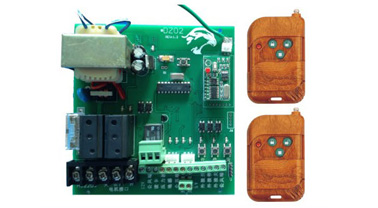

  • Barrier gate controller

    AU-DZM

    Product Specifications: 180*130*62mm
    Main Features
    1. Employs original imported high-power relays to ensure reliable operation of the barrier gate.
    2. Uses a high-performance superheterodyne wireless remote control receiver module with millions of learning codes to ensure operational stability.
    3. Provides an additional 5V/12V power supply for easy connection to limit detection settings of different models and voltages.
    4. Powered by 220V AC mains.

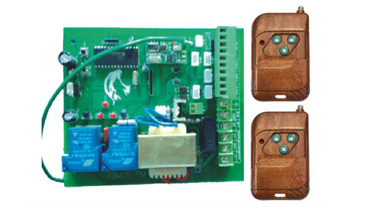

  • Electric sliding gate controller

    AU-SSM

    Product Specifications: 180*130*62mm
    Main Features
    1. Employs original imported high-power relays to ensure reliable operation of the barrier gate.
    2. Uses a high-performance superheterodyne wireless remote control receiver module with millions of learning codes to ensure operational stability.
    3. Provides an additional 5V/12V power supply for easy connection to limit detection settings of different models and voltages.
    4. Powered by 220V AC mains.

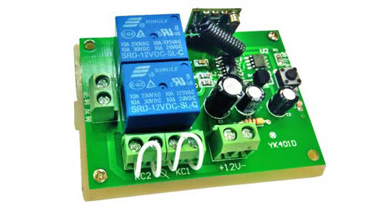

  • 12V DC motor forward and reverse controller

    AU-YK401D

    Features:
    1. Dual powered outputs with dual limit switches.
    2. Main applications: motor forward/reverse rotation, remote control of electric doors (roller shutters), remote control of curtains (left/right sliding), remote control of motors (up/down lifting), security and other remote control applications.
    3. Employs high-capacity relays, capable of controlling motors and equipment up to kilowatts.
    4. Uses wireless coding technology, omnidirectional, and switches do not interfere with each other.
    Main Technical Specifications:
    Operating Voltage: DC12V
    Receiving Frequency: 315MHz~433MHz (customizable)
    Receiving Sensitivity: -110dB
    Operating Mode: Interlock Delay 1 minute
    Maximum Load: 7A

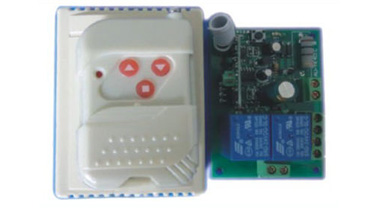

  • 24V DC motor forward and reverse controller

    AU-YK401C

    Features:
    1. Dual powered outputs with dual limit switches.
    2. Main applications: motor forward/reverse rotation, remote control of electric doors (roller shutters), remote control of curtains (left/right sliding), remote control of motors (up/down lifting), security and other remote control applications.
    3. Employs high-capacity relays, capable of controlling motors and equipment up to kilowatts.
    4. Uses wireless coding technology, omnidirectional, and switches do not interfere with each other.
    Main Technical Specifications:
    Operating Voltage: DC24V
    Receiving Frequency: 315MHz~433MHz (customizable)
    Receiving Sensitivity: -95dB
    Operating Mode: Operating modes: inching, interlocking, self-locking
    Maximum Load: 7A

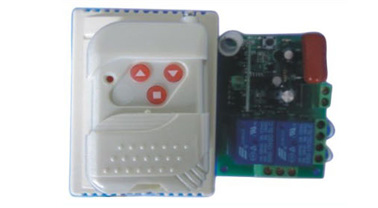

  • 220V DC motor forward and reverse controller

    AU-YK402B

    Features:
    1. Dual powered outputs with dual limit switches.
    2. Main applications: motor forward/reverse rotation, remote control of electric doors (roller shutters), remote control of curtains (left/right sliding), remote control of motors (up/down lifting), security and other remote control applications.
    3. Employs high-capacity relays, capable of controlling motors and equipment up to kilowatts.
    4. Uses wireless coding technology, omnidirectional, and switches do not interfere with each other.
    Main Technical Specifications:
    Operating Voltage: AC220V
    Receiving Frequency: 315MHz~433MHz (customizable)
    Receiving Sensitivity: -95dB
    Operating Mode: Operating modes: inching, interlocking, self-locking
    Maximum Load: 7A
