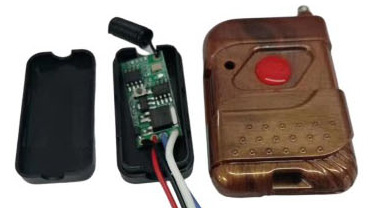

This miniature switch is ultra-small in size, making it easy to embed in products.
It boasts a sensitivity of -110dBm and utilizes an internal phase-locked loop (PLL) for frequency stabilization, ensuring stable reception.
The microcontroller can directly process data.
It can operate on a wide voltage range of 6~24V, with the output voltage matching the input voltage.
Dimensions: 28mm (L) x 13mm (W)
Load Power: 2A

Industry Parameters:
1. Operating Voltage: 12V
2. Operating Frequency: 315MHz (433MHz or other frequencies can be customized)
3. Receiver Sensitivity: -95dB
4. Encoding Method: Learning type
5. Operating Mode: Switchable between inching/interlocking/self-locking
6. Output Method: One set of switch signals
7. Maximum Load: 3A
Mainly used in remote control applications for electric doors, windows, switches, automotive parts, security alarms, etc.

Industry Parameters:
1. Operating Voltage: 12V
2. Operating Frequency: 315MHz (433MHz or other frequencies can be customized)
3. Receiver Sensitivity: -95dB
4. Encoding Method: Learning type
5. Operating Mode: Switchable between inching/interlocking/self-locking
6. Output Method: One set of switch signals
7. Maximum Load: 3A
Mainly used in remote control applications for electric doors, windows, switches, automotive parts, security alarms, etc.

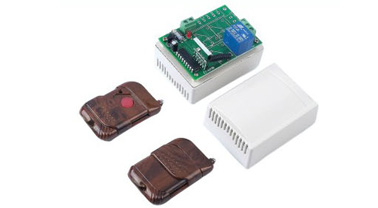

Main Technical Specifications
Operating Voltage: DC12~24V
Operating Frequency: 433MHz (315MHz or other frequencies can be customized)
Encoding Method: Learning type
Operating Mode: 3-second jog/interlock/jog can be switched via a jumper cap (without a jumper cap, there is a direct jog or 3-second jog program, which may vary depending on the customer)
Output Method: One set of switch signals
Maximum Load: 10A
Dimensions: 62*35*22 mm
Main applications include remote control of electric doors, windows, switches, automotive parts, security alarms, etc.

Main Technical Specifications
Operating Voltage: DC12~24V
Operating Frequency: 433MHz (315MHz or other frequencies can be customized)
Encoding Method: Learning type
Operating Mode: 3-second jog/interlock/jog can be switched via a jumper cap (without a jumper cap, there is a direct jog or 3-second jog program, which may vary depending on the customer)
Output Method: One set of switch signals
Maximum Load: 10A
Dimensions: 62*35*22 mm
Main applications include remote control of electric doors, windows, switches, automotive parts, security alarms, etc.

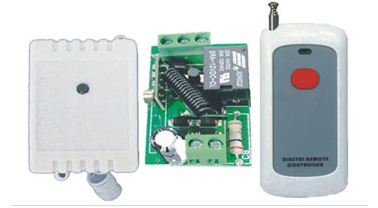

Main Technical Specifications:
Operating Voltage: DC12V
Receiving Frequency: 315MHz/433MHz (Other frequencies can be customized)
Encoding Method: Fixed code encoding
Operating Modes: Jog, Interlock, Self-locking
Output Channel: Single channel
Maximum Load: 10A
Main Applications: Remote control of electric doors, windows, switches, security systems, and other industrial or lighting remote control applications.

Main Technical Specifications:
Operating Voltage: DC12V
Receiving Frequency: 315MHz/433MHz (Other frequencies can be customized)
Encoding Method: Fixed code encoding
Operating Modes: Jog, Interlock, Self-locking
Output Channel: Two channel
Maximum Load: 10A
Main Applications: Remote control of electric doors, windows, switches, security systems, and other industrial or lighting remote control applications.

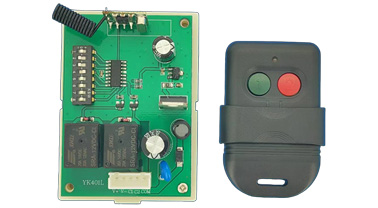

Main Technical Specifications:
Operating Voltage (Wide Voltage): DC12V-DC24V or AC12V-AC24V
Receiving Frequency: 330MHz, 433MHz selectable
Operating Mode: Momentary M4
Encoding Chip: SMC5326
Encoding Method: Tri-state 8-bit DIP switch
Contact Rated Current: 20A (14VDC), 20A (125VAC)
Product Dimensions: 75X55X30mm
Product Weight: 62g (excluding remote control weight)
Main Applications: Electric doors (garage doors, swing doors, sliding doors, automatic doors, retractable gates, barriers, parking lots, etc.), security access control, etc.

Main Technical Specifications:
Operating Voltage: DC12V
Receiving Frequency: 315MHz/433MHz (Other frequencies can be customized)
Encoding Method: Fixed code encoding
Operating Modes: Jog, Interlock, Self-locking
Output Channel: Three channel
Maximum Load: 10A
Main Applications: Remote control of electric doors, windows, switches, security systems, and other industrial or lighting remote control applications.

Main Technical Specifications:
Operating Voltage: DC12V
Receiving Frequency: 315MHz/433MHz (Other frequencies can be customized)
Encoding Method: Fixed code encoding
Operating Modes: Jog, Interlock, Self-locking
Output Channel: Four channel
Maximum Load: 10A
Main Applications: Remote control of electric doors, windows, switches, security systems, and other industrial or lighting remote control applications.

Main Technical Specifications:
Operating Voltage: DC12V
Receiving Frequency: 315MHz/433MHz (other frequencies can be customized)
Encoding Method: Learning code encoding
Operating Modes: Jog, Interlock, Self-lock, Jog and Interlock
Features: Equipped with operating status indicator lights and remote control status indicator lights
Output Channels: Two channels
Maximum Load: 10A
Main Applications: Remote control of electric doors, windows, switches, security systems, and other industrial or lighting remote control applications.

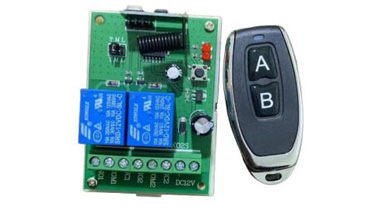

Main Technical Specifications:
Operating Voltage: DC12V
Receiving Frequency: 315MHz/433MHz (other frequencies can be customized)
Encoding Method: Learning code encoding
Operating Modes: Jog, Interlock, Self-lock, Jog and Interlock
Output Channels: Two channels
Maximum Load: 10A
Main Applications: Remote control of electric doors, windows, switches, security systems, and other industrial or lighting remote control applications.

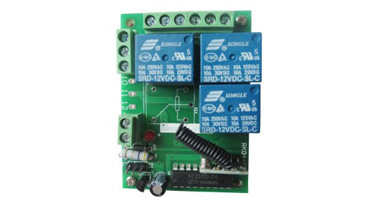

Main Technical Specifications:
Operating Voltage: DC12V
Receiving Frequency: 315MHz/433MHz (other frequencies can be customized)
Encoding Method: Learning code encoding
Operating Modes: Jog, Interlock, Self-lock, Jog and Interlock
Output Channels: Three channels
Maximum Load: 10A
Main Applications: Remote control of electric doors, windows, switches, security systems, and other industrial or lighting remote control applications.

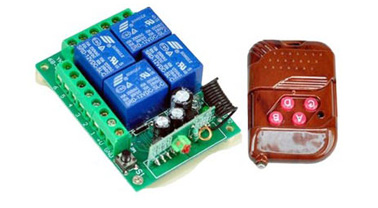

Main Technical Specifications:
Operating Voltage: DC12V
Receiving Frequency: 315MHz/433MHz (other frequencies can be customized)
Encoding Method: Learning code encoding
Operating Modes: Jog, Interlock, Self-lock, Jog and Interlock
Output Channels: Four channels
Maximum Load: 10A
Main Applications: Remote control of electric doors, windows, switches, security systems, and other industrial or lighting remote control applications.

Main Technical Specifications:
Operating Voltage: DC12V
Receiving Frequency: 315MHz/433MHz (other frequencies can be customized)
Encoding Method: Learning code encoding
Operating Modes: Jog, Interlock, Self-lock, Jog and Interlock
Features: Equipped with operating status indicator lights and remote control status indicator lights
Output Channels: Four channels
Maximum Load: 10A
Main Applications: Remote control of electric doors, windows, switches, security systems, and other industrial or lighting remote control applications.

Main Technical Specifications:
Operating Voltage: DC12V
Receiving Frequency: 315MHz/433MHz (other frequencies can be customized)
Encoding Method: Learning code encoding
Operating Modes: Jog, Interlock, Self-lock, Jog and Interlock
Output Channels: Six channels
Maximum Load: 10A
Main Applications: Remote control of electric doors, windows, switches, security systems, and other industrial or lighting remote control applications.

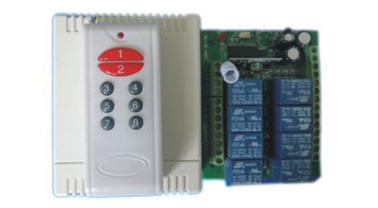

Main Technical Specifications:
Operating Voltage: DC12V
Receiving Frequency: 315MHz/433MHz (other frequencies can be customized)
Encoding Method: Learning code encoding
Operating Modes: Jog, Interlock, Self-lock, Jog and Interlock
Output Channels: Eight channels
Maximum Load: 10A
Main Applications: Remote control of electric doors, windows, switches, security systems, and other industrial or lighting remote control applications.

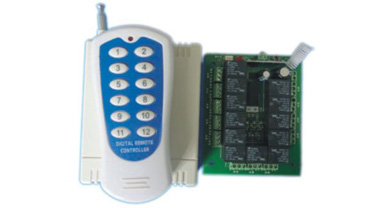

Main Technical Specifications:
Operating Voltage: DC12V
Receiving Frequency: 315MHz/433MHz (other frequencies can be customized)
Encoding Method: Learning code encoding
Operating Modes: Jog, Interlock, Self-lock, Jog and Interlock
Output Channels: 12-channel
Maximum Load: 10A
Main Applications: Remote control of electric doors, windows, switches, security systems, and other industrial or lighting remote control applications.

Main Technical Specifications:
Operating Voltage (Wide Voltage Range): DC12V-DC24V
Receiving Frequency: 315MHz, 433MHz, or other frequencies.
Receiving Sensitivity: -110dB
Operating Modes: Self-locking, Interlocking, Jogging (switched via jumper cap: L Interlocking, M Jogging, T Self-locking).
Main Applications: Electric bollards, electric doors, electric windows, security systems, and other industrial or lighting remote control applications.
